From casting alloys and MLS powders to CAD/CAM discs and laser wire — every product is manufactured by realloy e.K. in Germany with full CE mark and FDA clearance.
Select a category to see its products. Choose a product for full technical detail.

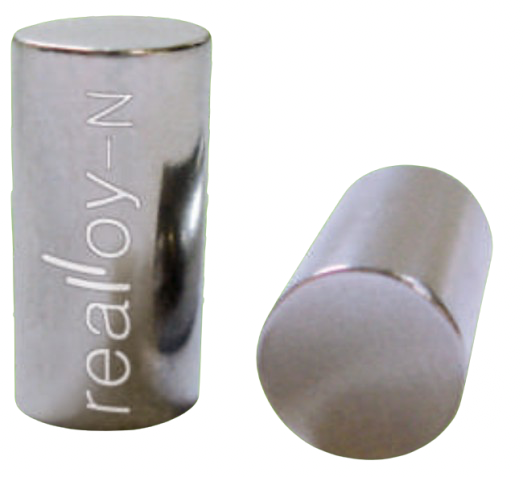

An universal NiCr bonding alloy compatible with all conventional ceramic materials.
| Density | approx. 8.2 g/cm3 |
|---|---|
| Vickers hardness | 180 (Hv10) |
| Linear CTE (25 - 500 °C) | 13,9 (10-6·K-1) |
| Linear CTE (25 - 600 °C) | 14,1 (10-6·K-1) |
| Melting interval | 1250 - 1330 (°C) |
| Casting temperature | 1390 (°C) |
| Recommended burning temperature | 980 (°C) |
| Proof strength (Rp 0,2) | 330 (MPa) |
| Modulus of elasticity | 205 (Gpa) |
| Tensile elongation (A5) | 25,0 (%) |
| Tensile strength (Rm) | 550 (Mpa) |
| Origin | Germany |
| Available quantity | 1000 g / 1 kg |

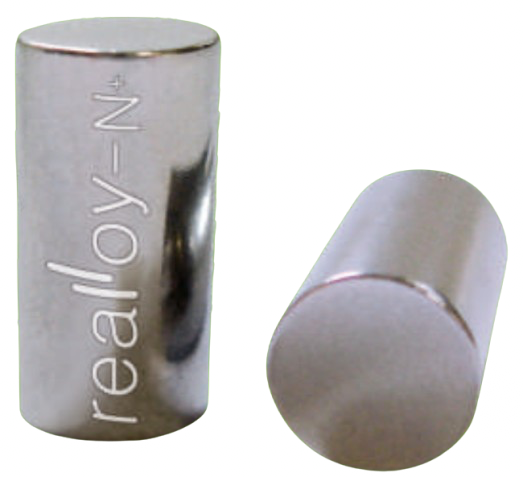

An universal NiCr bonding alloy compatible with all conventional ceramic materials.
| Density | approx. 8.2 g/cm3 |
|---|---|
| Vickers hardness | 200 (Hv10) |
| Linear CTE (25 - 500 °C) | 13,9 (10-6·K-1) |
| Linear CTE (25 - 600 °C) | 14,1 (10-6·K-1) |
| Melting interval | 1280 - 1350 (°C) |
| Casting temperature | 1420 (°C) |
| Recommended burning temperature | 980 (°C) |
| Proof strength (Rp 0,2) | 375 (MPa) |
| Modulus of elasticity | 200 (GPa) |
| Tensile elongation (A5) | 10,0 (%) |
| Tensile strength (Rm) | 660 (MPa) |
| Origin | Germany |
| Available quantity | 1000 g / 1 kg |

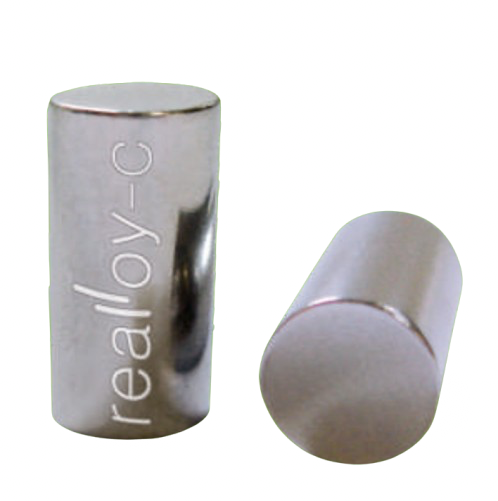

An universal CoCr bonding alloy compatible with all conventional ceramic materials.
| Density | 8,3 g/cm3 |
|---|---|
| Vickers hardness | 285 (HV10) |
| Linear CTE (25 - 500 °C) | 13,9 (10-6·K-1) |
| Linear CTE (25 - 600 °C) | 14,0 (10-6·K-1) |
| Melting interval | 1304 - 1369 (°C) |
| Casting temperature | 1470 (°C) |
| Recommended burning temperature | 980 (°C) |
| Proof strength (Rp 0,2) | 490 (MPa) |
| Tensile strength (Rm) | 920 (MPa) |
| Modulus of elasticity | 210 (GPa) |
| Tensile elongation (A5) | 10 (%) |
| Origin | Germany |
| Available quantity | 1000 g / 1 kg |

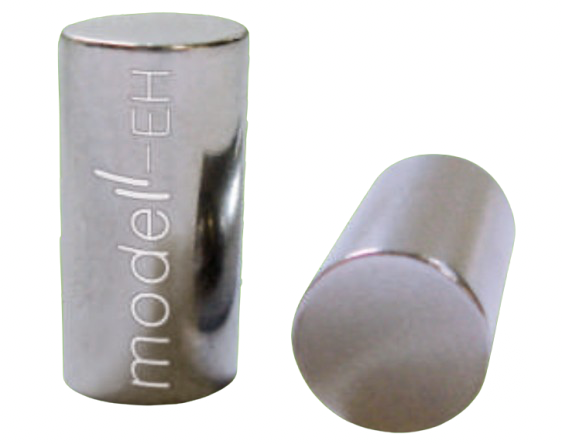

Extra-hard CoCr model casting.
| Density | 8,3 g/cm3 |
|---|---|
| Vickers hardness | 375 (HV10) |
| Melting interval | 1260 - 1320 (°C) |
| Casting temperature | 1440 (°C) |
| Proof strength (Rp 0,2) | 620 (MPa) |
| Tensile strength (Rm) | 920 (MPa) |
| Modulus of elasticity | 220 (GPa) |
| Tensile elongation (A5) | 4,5 (%) |
| Origin | Germany |
| Available quantity | 1000 g / 1 kg |

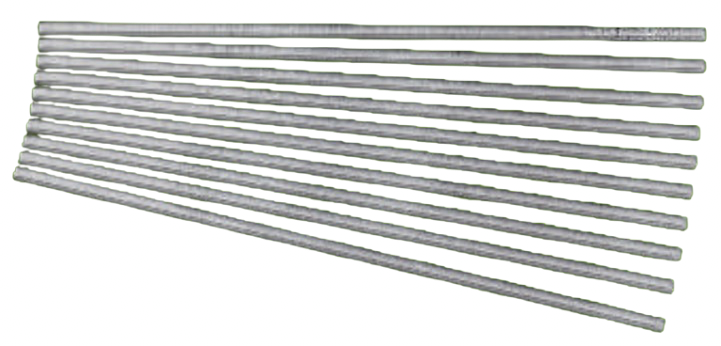

Universal solder for CoCr alloys.
| Melting interval | 1140 - 1210 (°C) |
|---|---|
| Melting temperature | 1230 (°C) |
| Origin | Germany |
| Available quantity | 1000 g / 1 kg |
An universal CoCr Powder, compatible with all conventional ceramic applications and partial dentures (Frameworks) for the Selective Laser Manufacturing (SLM/MLS) process.
| Partice size / Micron | 15-45 μm |
|---|---|
| Density | 8.3 g/cm3 |
| Vickers hardness (after sintering): | 285 (Hv10) |
| Linear CTE (25 - 500 °C) | 13,9 (10-6·K-1) |
| Linear CTE (25 - 600 °C) | 14,0 (10-6·K-1) |
| Recommended burning temperature | 980 (°C) |
| Proof strength (Rp 0,2) | 1110 (MPa) |
| Tensile strength (Rm) | 1250 (MPa) |
| Modulus of elasticity | 236 (Gpa) |
| Tensile elongation (A5) | 3 (%) |
| Origin | Germany |
| Available quantity | 5000 g / 5 kg |

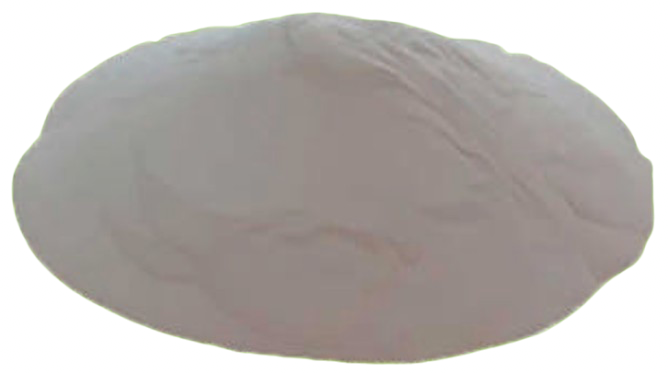

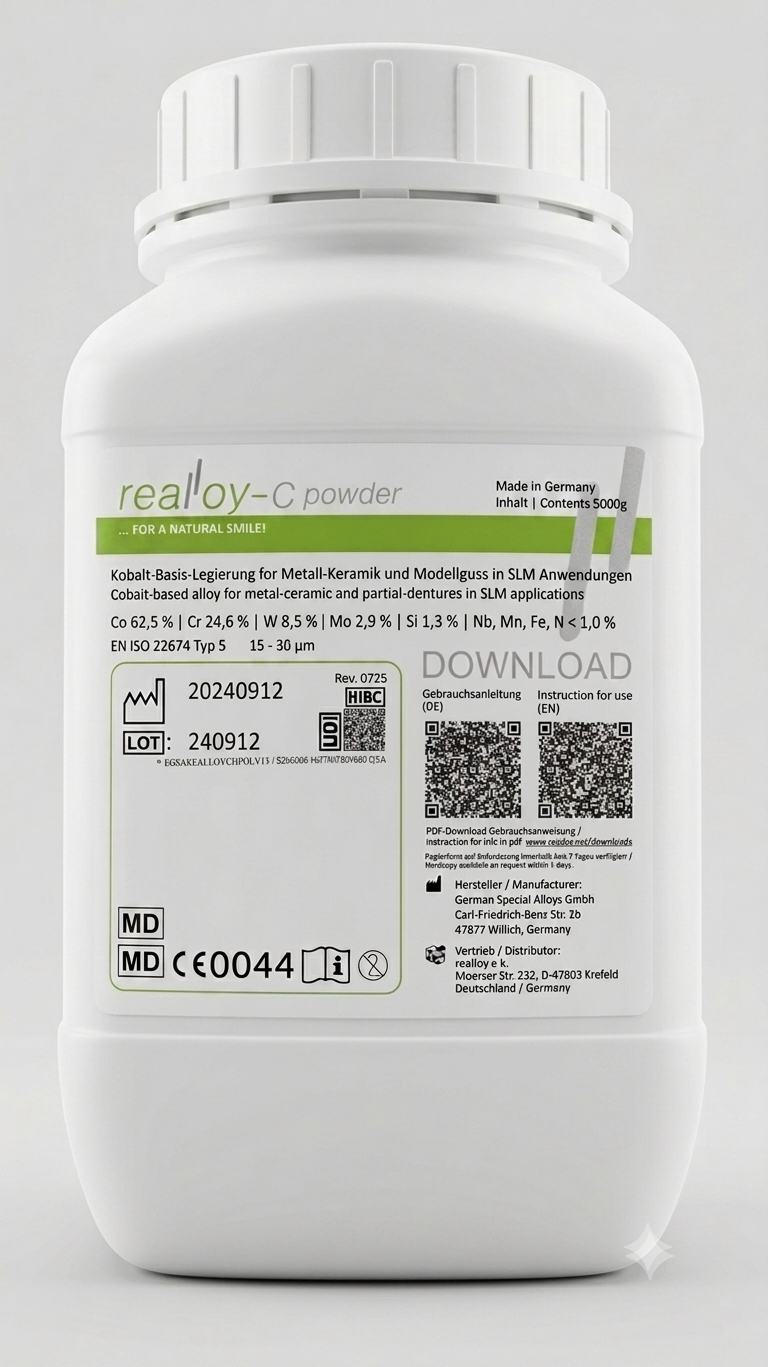

An universal CoCr Powder, compatible with all conventional ceramic applications and partial dentures (Frameworks) for the Selective Laser Manufacturing (SLM/MLS) process.
| Partice size / Micron | 10-30 μm |
|---|---|
| Density | 8.3 g/cm3 |
| Vickers hardness (after sintering): | 515 (Hv10) |
| Linear CTE (25 - 500 °C) | 13,9 (10-6·K-1) |
| Linear CTE (25 - 600 °C) | 14,0 (10-6·K-1) |
| Recommended burning temperature | 980 (°C) |
| Proof strength (Rp 0,2) | 1200 (MPa) |
| Tensile strength (Rm) | 1300 (MPa) |
| Modulus of elasticity | 171 (Gpa) |
| Tensile elongation (A5) | 3 (%) |
| Origin | Germany |
| Quantity | 5000 g / 5 kg |
An universal NiCr Powder, compatible with all conventional ceramic applications and partial dentures (Frameworks) for the Selective Laser Manufacturing (SLM/MLS) process.
| No data available. | |
|---|---|
| Origin | Germany |
| Available quantity | 5000 g / 5 kg |

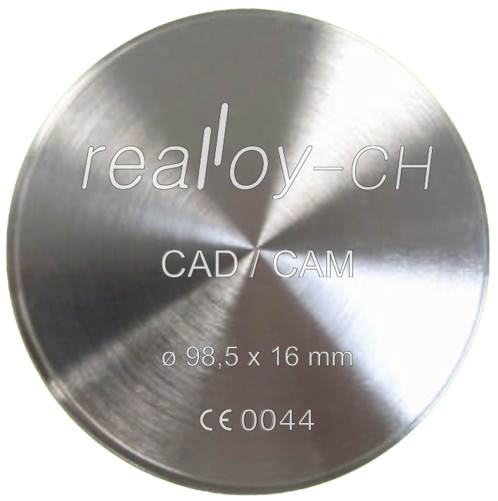

CoCr-Disc for CAD/CAM application.
| Density | 8.2 g/cm3 |
|---|---|
| Vickers hardness | 330 (HV10) |
| Linear CTE (25 - 500 °C) | 14,2 (10-6·K-1) |
| Linear CTE (25 - 600 °C) | 14,4 (10-6,·K-1) |
| Recommended burning temperature | 980 (°C) |
| Proof strength (Rp 0,2) | 610 (MPa) |
| Modulus of elasticity | 200 (GPa) |
| Tensile elongation (A5) | 6,5 (%) |
| Tensile strength (Rm) | 610 (MPa) |
| Diameter(s) available | Ø 98.5 mm or without step Ø 99.5 mm |
| Height(s) available | Height: 8 | 10 | 12 | 13.5 | 14 | 15 | 16 | 18 | 20 | 22 | 24 mm |
| Origin | Germany |
| Available quantity | 1 pc / pack |

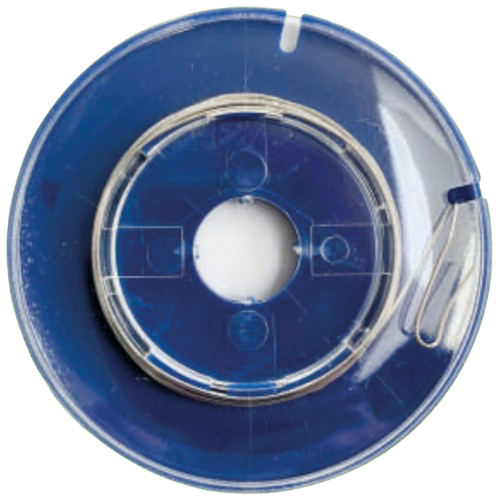

CoCr welding wire for laser joining and repair of frameworks.
| Diameter | Ø 0,5 mm or Ø 0,3 |
|---|---|
| Length | 2 m |
| Origin | Germany |
| Available quantity | 1 pc / pack |
Your reliable partners for high quality & high purity dental alloys. All products made in Germany by realloy e.K.
