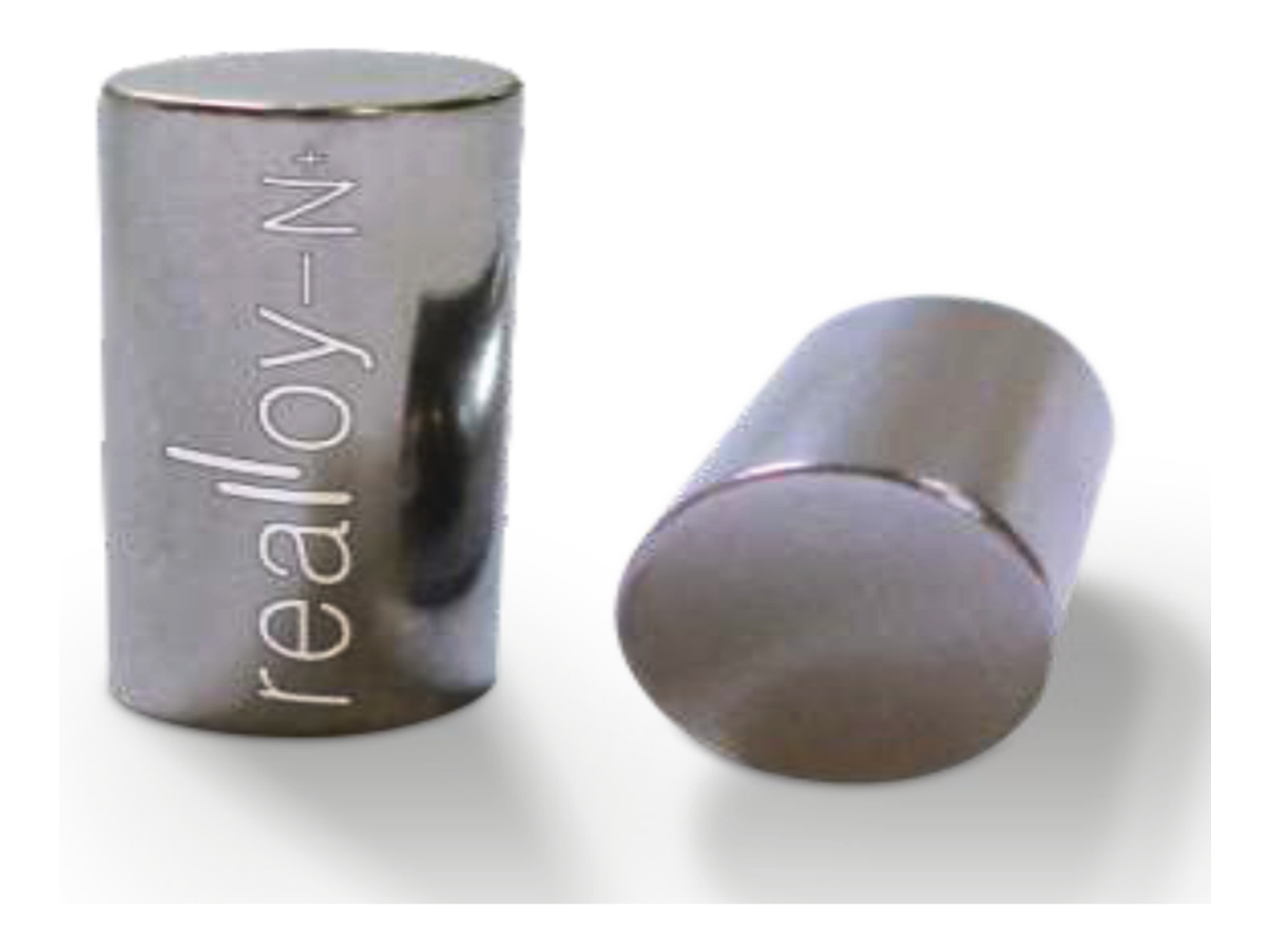

realloy-N+
An Universal NiCr bonding alloy compatible with all conventional ceramic materials
- High stability
- Excellent bonding with ceramics
- Can be melted with all casting methods
- Easy finishing after casting
- Also suitable for laser welding
- Worldwide proven quality
- Best in its class
- Biocompatible
COMPOSITION
Ni 62.4% I Cr 25.0% I Mo 11,% I Si 1.6 % I Nb, Mn, Fe < 1 %
This alloy is Beryllium free and complies with EN ISO 22674 Typ 3
PROPERTIES
- Density
- Vickers hardness
- Linear CTE (25-500ºC)
- Linear CTE (25-600ºC)
- Melting interval
- Casting temperature
- Burning temperature
- Proof strength (Rp 0.2)
- Tensile strength (Rm)
- Modulus of elasticity
- Tensile elongation (A5)
- 8,2 g/cm3
- 200 (HV10)
- 13.9 (10-6.K-1)
- 14.1 (10-6.K-1)
- 1280 - 1350 (ºC)
- 1420 (ºC)
- 980 (ºC)
- 375 (Mpa)
- 660 (Mpa)
- 200 (Gpa)
- 10 (%)
