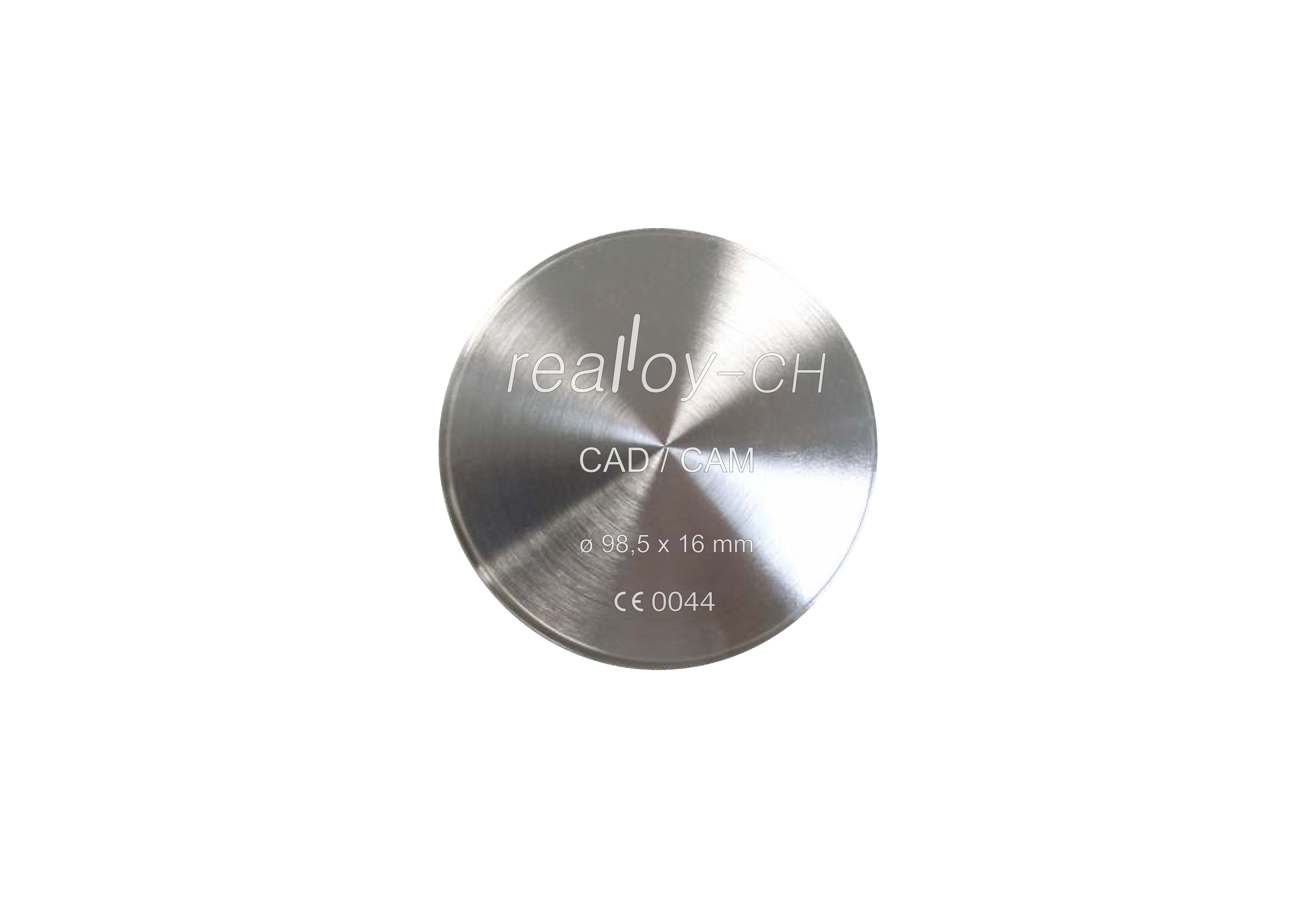

realloy-CH

  • CoCr-Disc for CAD/CAM application
  • Height: 8 I 10 I 12 I 13.5 I 14 I 15 I 16 I 18 I 20 I 22 I 24 mm
  • Diameter Ø 98.5 mm
  • Biocompatible

COMPOSITION

Co 63.0% I Cr 29.0% I Mo 5.8% I Si 1.2% I Nb, Mn, Fe, < 1 %

This alloy is Nickel and Beryllium free and complies EN ISO 22674 Typ 4

PROPERTIES

  • Density
  • Vickers hardness
  • Linear CTE (25-500ºC)
  • Linear CTE (25-600ºC)
  • Melting interval
  • Casting temperature
  • Burning temperature
  • Proof strength (Rp 0.2)
  • Tensile strength (Rm)
  • Modulus of elasticity
  • Tensile elongation (A5)
  • 8,2 g/cm3
  • 330 (HV10)
  • 14.2 (10-6.K-1)
  • 14.4 (10-6.K-1)
  • 1290 - 1370 (ºC)
  • 1470 (ºC)
  • 980 (ºC)
  • 610 (Mpa)
  • 610 (Mpa)
  • 200 (Gpa)
  • 6.5 (%)
